High precision roadside sensing device

LDTelescope®

LDTelescope® is an unit of roadside sensing fusion system designed for intelligent trasportation and V2X applicaiton requirements.

The system can support various functions include traffic objectives sensing and recognition, collision warning, traffic flow statistics, average speed statistics of traffic flow, etc., and be used at intelligent proving ground, highways, tunnels, holographic intersection and other application scenarios.

Hardware

consists of LDTelescope LiDAR-Camera All-in-One sensor and LD MEC.

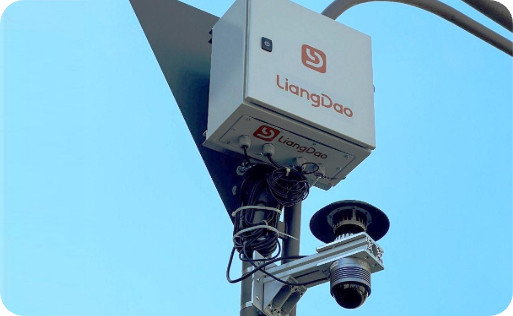

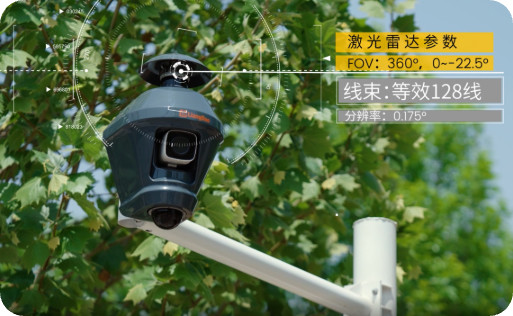

LDTelescope® LiDAR-Camera All-in-One sensor

LiDAR

  • Detection Range
    ～200m
  • Horizontal FOV
    360°
  • Vertical FOV
    0° ～ -90°
  • Resolution
    Up to 0.1°

Camera

  • Effective Pixel
    5million
  • Resolution
    2560*1920
  • Diagonal FOV
    104.4°
LD MEC

  • Distributed and low-latency computing
  • Higher calculation efficiency
  • Intelligent recognition
  • Lower power and energy conservation
  • Higher integration
  • Precision
    95%
  • Recall
    98%
  • Positioning precision
    0.1m
  • Heading angle precision
    3°
  • Scale
    0.1m
  • Velocity precision
    2Km/h
  • (Vehicle as a target, in the region of interest)

Software

LDTelescope perception fusion algorithms deployed on LD MEC to stitch, fuse, and cluster of point clouds and images, for the detection, tracking and recognition of objectives. It can also transfer the perception results to RSU and upper level functional development platform.

Functions

Use Cases

  • Smart City Project

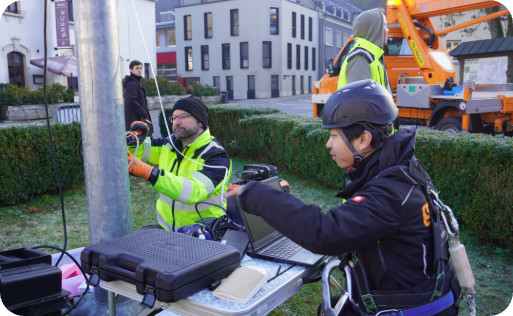

    Solingen
    The roadside LiDAR sensing project of Liangdao was implemented in Solingen first. In compliance with European data protection regulations, Liangdao has applied two LiDAR sensors to acquire real-time traffic data from pedestrians and vehicles on urban roads, and used the data to record and analyze traffic flow after intelligent software analysis.
  • Smart City Project
    Wuppertal
    The roadside sensing system installed at two intersections in Wuppertal. Not only should it be able to recognize cars, but also other objectives (Buses, Cyclists, Pedestrians).The traffic lights based on the LIDAR system installed will also be able to record the speed and direction of objectives and react accordingly
  • Smart City Project
    Luxembourg
    Liangdao has provided roadside sensing systems for each of the two intersections on two sides of Luxembourg. In compliance with European data protection regulations, those two systems are used to acquire real-time traffic data from pedestrians and vehicles on the city's roads, and used the data to record and analyze traffic flow after intelligent software analysis.
  • Proving Ground Project
    Unmanned project in Xushui proving ground realized the unmanned vehicle testing under the vehicle-road cloud collaboration technology based on 5G + cloud control. LiangDao is responsible for building the roadside sensing system of the proving ground, and realizing the fusion of 29 single-point sensing unitst to achieve the output of target-level sensing results through clustering algorithms. The joint completion of large screen display and unmanned testing can be achieved through the transformation from defined data protocols to the cloud control platform.
